The EDL test point is a specific contact area on the Nothing Phone 2's motherboard that allows the device to enter Emergency Download Mode when shorted. This hardware-level method is essential when the phone becomes bricked, stuck in boot loop, or unresponsive. Once in EDL mode, the device can interface with a computer using an EDL Flash Tool to flash firmware and recover functionality.
To put your Nothing Phone 2 into EDL mode via test point, follow the instructions carefully below. This method is effective when software-based options (like ADB or Fastboot) aren't working.
Note:
- This process involves opening the device, which may void warranty or cause damage if not done correctly.
- Proceed only if you're confident or experienced with hardware disassembly.
How to Reboot Nothing Phone 2 into EDL Mode Using Test Point:
- Install the required EDL USB driver on your PC.
- Power off the device completely.
- Gently remove the back cover and any shielding to access the motherboard.
- Locate the EDL test point as shown in the image below.
- Short the test point using a copper wire or tweezer, then connect USB cable to PC.
- Check the Device Manager under COM Port.
- If the device isn't detected, retry the shorting process and make sure drivers are correctly installed.
Why Use Test Point?
- Device is hard-bricked or unresponsive
- Bootloader or recovery is corrupted
- FRP lock removal when no ADB or Fastboot access
- To flash official firmware without unlocking bootloader

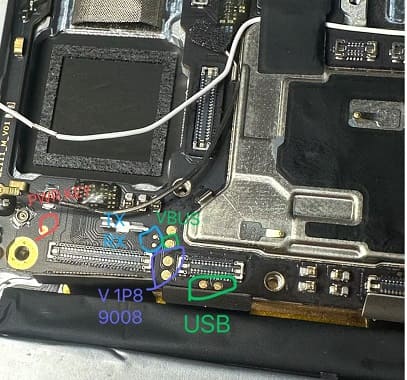

Test Point image for Nothing Phone 2:
