The EDL test point is a specific contact area on the Poco Pad (dizi)'s motherboard that allows the device to enter Emergency Download Mode when shorted. This hardware-level method is essential when the phone becomes bricked, stuck in boot loop, or unresponsive. Once in EDL mode, the device can interface with a computer using an EDL install Tool to flash firmware and recover functionality.
To put your Poco Pad (dizi) into EDL mode via test point, follow the instructions carefully below. This method is effective when software-based options (like ADB or Fastboot) aren't working.
Note:
- This process involves opening the device, which may void warranty or cause damage if not done correctly.
- Proceed only if you're confident or experienced with hardware disassembly.
How to Reboot Poco Pad (dizi) into EDL Mode Using Test Point:
- Install the required EDL USB USB driver on your PC.
- Power off the device completely.
- Gently remove the back cover and any shielding to access the motherboard.
- Locate the EDL test point as shown in the image below.
- Short the test point using a copper wire or tweezer, then connect USB cable to PC.
- Check the Device Manager under COM Port.
- If the device isn't detected, retry the shorting process and make sure drivers are correctly installed.
Why Use Test Point?
- Device is hard-bricked or unresponsive
- Bootloader or recovery is corrupted
- FRP lock removal when no ADB or Fastboot access
- To install official firmware without unlocking bootloader

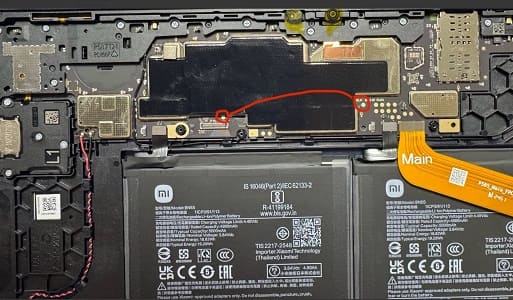

Test Point image for Poco Pad (dizi):
