The EDL test point is typically a set of pins on the Honor 100 Pro MAA-AN10’s circuit board that can be shorted together in order to put the device into emergency download mode. In EDL mode, the device can communicate with a computer and receive new Firmware or software through a specialized EDL Flashing tool.
to enable EDL Mod on Your Honor 100 Pro MAA-AN10 You have to do test Point, which you can do by following the below instructions.
Note:
- test point require additional device disassemble knowledge, do at own risk
How to Reboot Honor 100 Pro MAA-AN10 into EDL Mod:
- Install edl usb driver on your computer
- Remove back cover of the device
- Search the test point as show in below image
- keep shorting the test point using a copper wire or tweezer and Insert usb
- Check USB COM device under COM Port in device manager
- If no device, try again

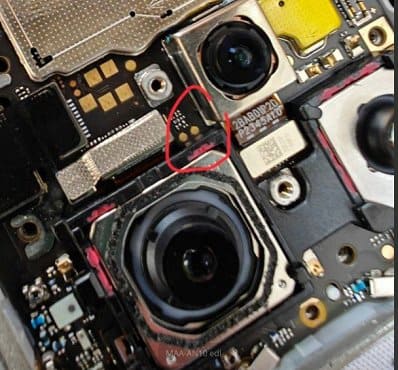

Test Point image for Honor 100 Pro MAA-AN10
