The EDL test point is typically a set of pins on the Asus ROG Phone 8’s circuit board that can be shorted together in order to put the device into emergency download mode. In EDL mode, the device can communicate with a computer and receive new Firmware or software through a specialized EDL Flashing tool.
to enable EDL Mod on Your Asus ROG Phone 8 You have to do test Point, which you can do by following the below instructions. Note:
- test point require additional device disassemble knowledge, do at own risk
How to Reboot Asus ROG Phone 8 into EDL Mod:
- Install edl usb driver on your computer
- Remove back cover of the device
- Search the test point as show in below image

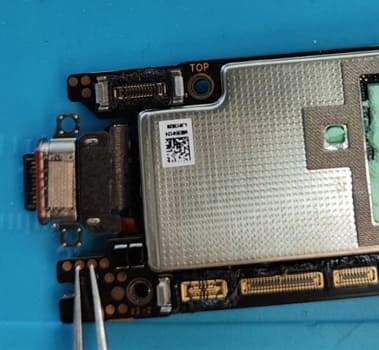

- keep shorting the test point using a copper wire or tweezer and Insert usb
- Check USB COM device under COM Port in device manager
- If no device, try again

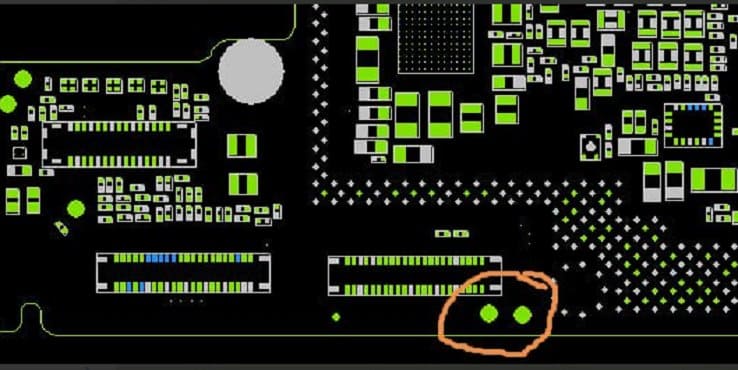

Test Point image for Asus ROG Phone 8
